  • Discharge height up to 3.00 m
  • Airflow rate of 1,800–6,300 m³/h
  • Device length from 1.0 to 2.50 m
  • Three installation options
  • Custom Color Selection

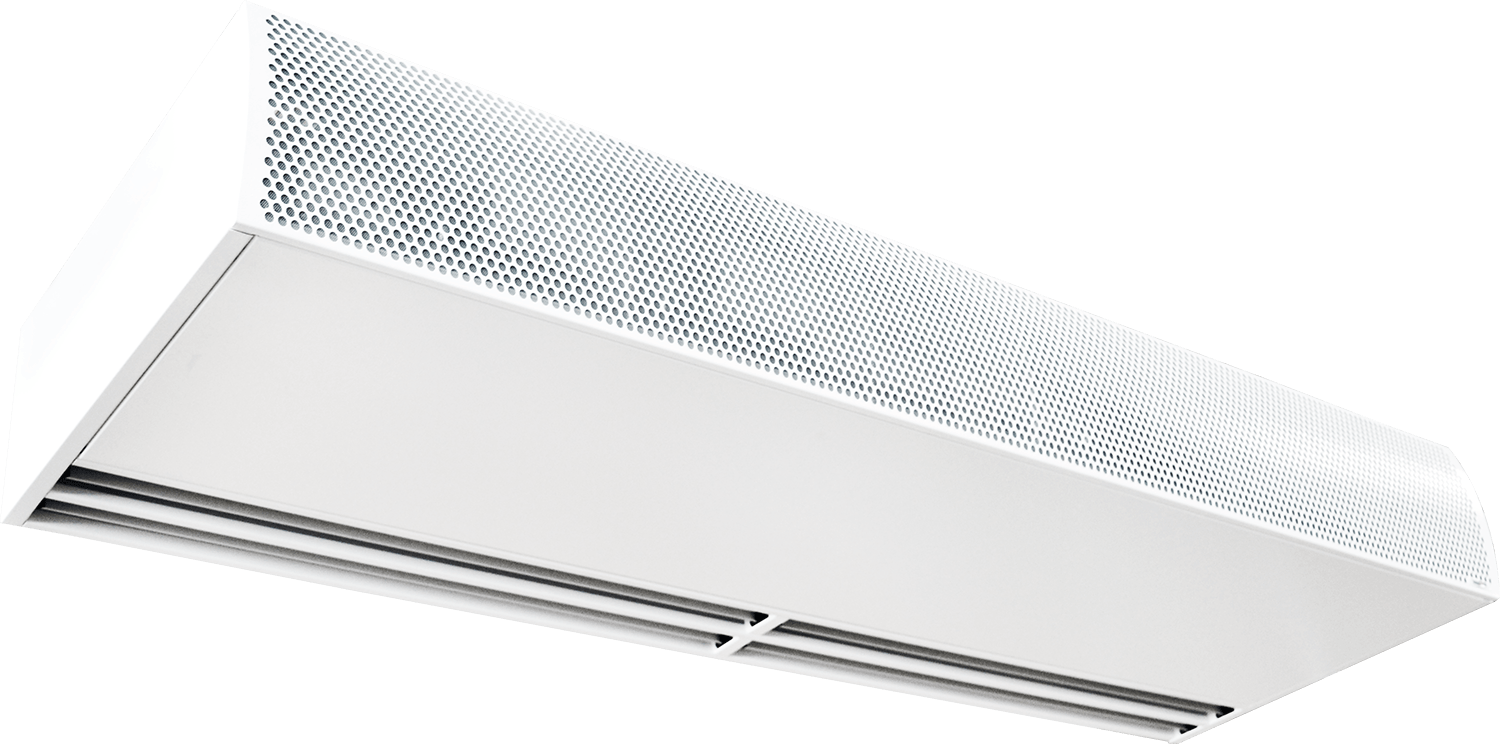

DUAL EC

Der Allrounder


DUAL EC
Luftschleier


Dual EC ist das Vorzeigemodell für moderne Shop- und Retailflächen. Überall dort, wo nur begrenzte Heizenergie zur Verfügung steht und diese gezielt eingesetzt werden muss, bietet das System eine besonders effiziente Lösung für den Eingangsbereich.

Das Besondere an Dual EC ist das Prinzip der zwei getrennten Luftströme, bezeichnet auch als Dualtechnologie. Im Geräteinneren erzeugen zwei Ventilatorreihen einen äußeren, nicht erwärmten Luftstrom und einen inneren, erwärmten Luftstrom. Diese getrennte Luftführung bleibt bis zum Luftaustritt erhalten. Der ungeheizte äußere Luftstrom stabilisiert das gesamte Strömungsverhalten, steigert die Wurfweite und optimiert die Abschirmung im Türbereich.

DUAL EC – Leistungsstark und wirkungsvoll
  1. Made in Germany
  2. Mit Dualtechnologie
  3. Sturdy, self-supporting sheet steel housing
  4. Custom color available (standard: RAL9016)
  5. Equipment lengths up to 2,500 mm
  6. Easy-to-maintain filter cleaning thanks to micro-grids
  7. Aerodynamically Optimized Dual-Exhaust Vanes
  8. Three Installation Options
  9. Various heating media are possible
  10. EC Fans
  11. TEKADOOR Electronic Multifunction Control Unit; on-site control is optional

Die Montage erfolgt durch auf der Geräteoberseite eingelassene Nietmuttern (M8) und optional erhältliches Montagematerial. In der Standardausführung braucht das Gerät für den Elektroanschluss nicht geöffnet werden. Anschlussklemmen für die Spannungsversorgung sowie die Steckverbindungen für das Schaltgerät und den Parallelbetrieb sind von außen zugänglich.

  • Self-supporting sheet steel enclosure with no visible screws.
  • Pulverbeschichtung standardmäßig in RAL 9016 (verkehrsweiß). Andere Farbgebung möglich.
  • Inspection panel bolted in place behind the intake grille.
  • Doppelte, aerodynamisch optimierte Alu-Ausblaslamellen (natur eloxiert), 5-fach verstellbar und mit der Geräteunterseite bündig abschließend.
  • Ansauggitter (im Gerätefarbton) aus Lochblech mit dahinterliegendem Mikrogitter als Ansaugfilter.

Easy-to-maintain cleaning (micro-grille) without opening the unit—simply vacuum the intake grille. A blind-bolted and secured access panel (hinged on one side) on the underside of the unit is easy to open for maintenance work.

Heat exchangers available for various heating media:

DHW: For low-temperature DHW 60/40; other temperatures available upon request.
DX: DX coils brazed under nitrogen for use with heat pumps (heating mode only). High-quality heat exchangers made of copper tubing, with press-fitted, extra-strong aluminum fins.

TEKADOOR CAT Electronic Multifunctional Control System

  • A 20-meter pre-assembled, shielded data cable is included as standard with devices equipped with PWW and electric heating.
  • The 5-stage CAT control system includes a manual/automatic mode and a summer/winter switch as standard features.
  • A weekly timer with a timer function can be optionally implemented using enable contacts. For winter operation, a solenoid valve rated up to 2.5 A can be optionally connected.
  • With the CAT control system, the airflow can be manually adjusted in 5 steps, and the heating output—which, in the case of electric heating, depends on the fan speed—can be manually adjusted in 3 steps.
  • An enable contact and potential-free operating and fault signals are available for control via a customer-supplied BMS or DDC.
  • Up to 10 devices can be connected in parallel in a master-slave configuration.
  • On-site control via a ModBus interface is also possible.

Die einzeln angetriebenen EC-Ventilatoren mit integriertem Motorschutz sind doppelseitig ansaugend, vibrationsfrei gelagert und werden durch ein PWM – Signal (Pulsweitenmodulation) angesteuert.

DUAL EC

TECHNICAL SPECIFICATIONS

Gute Abschirmung.
Vielseitig einsetzbar.
Stark im Design.
Custom device length From 1.0 m to 2.50 m
Discharge Height Up to 3.00 m
Dualtechnologie Für wirksame Türabschirmung
Custom device length From 1.0 m to 2.50 m
Blow-out height Up to 3.00 m
Dual Technology Für wirksame Türabschirmung
Heating Media PWW, DX Register
Heating capacity From 5.6 to 20.0 kW
Case Color Standard color: RAL 9016; other colors available upon request
Dimensions (H/T) 260 / 660 mm
Airflow From 1,800 to 6,300 m³/h
Temperature Version (PWW) Standard version: 60/40 °C; other temperatures available upon request
Installation Options Free-hanging, flush with the ceiling as a cassette, and recessed into the false ceiling with a sliding connection and an intake chamber
Weight From 68 to 211 kg
Download the data sheet
THE MODELS

THE DUAL EC SERIES

Discover the various models in the DUAL EC Series— designed for maximum performance, modern design, and efficient airflow in a wide range of applications.

DUAL M EC
Application Example
DUAL EC DUAL M EC

Ready-to-connect door air curtain systems available in the following variants:

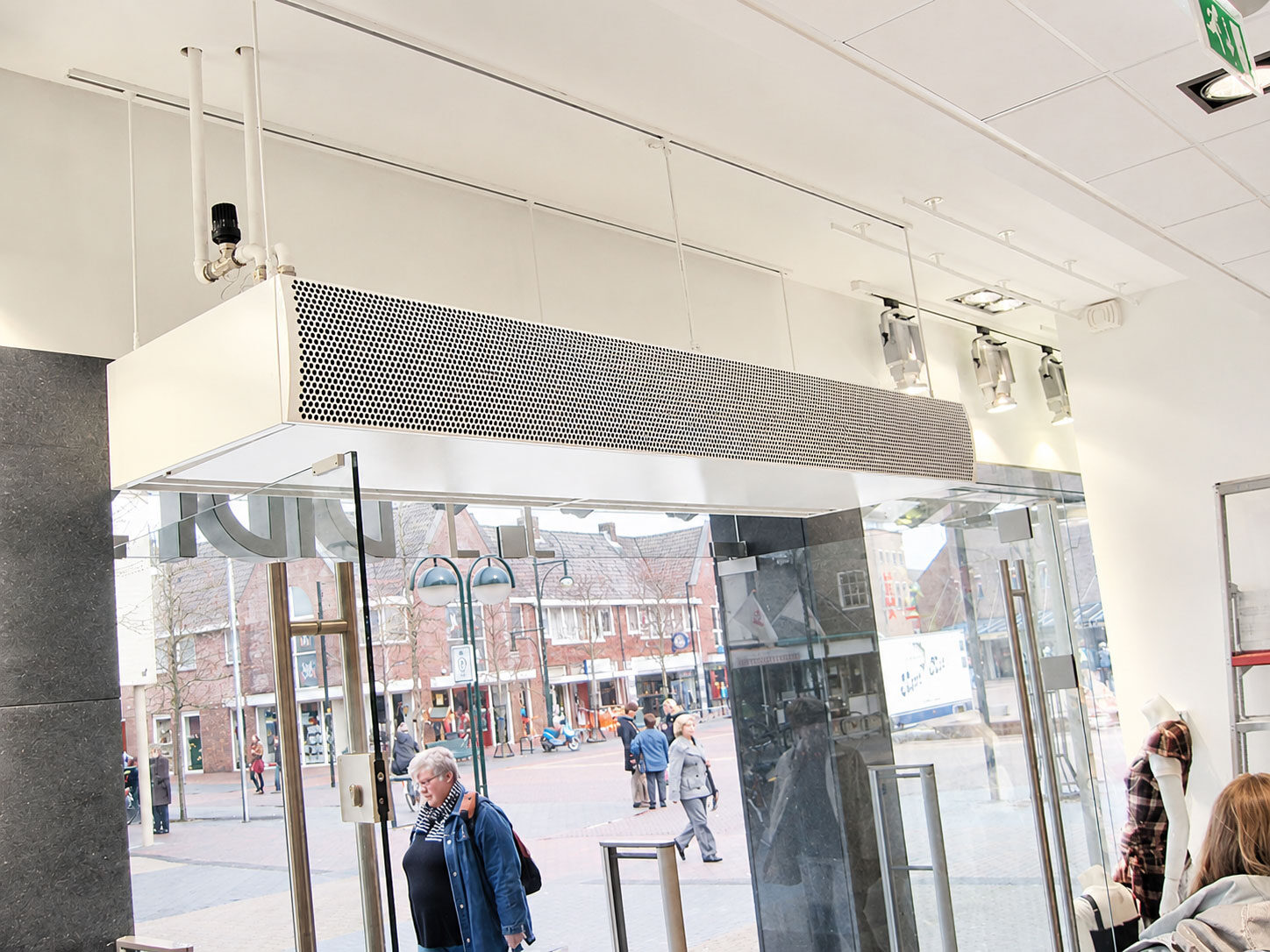

Free-hanging, for visible installation above the door. Recirculated air is drawn in from the front, facing the room.

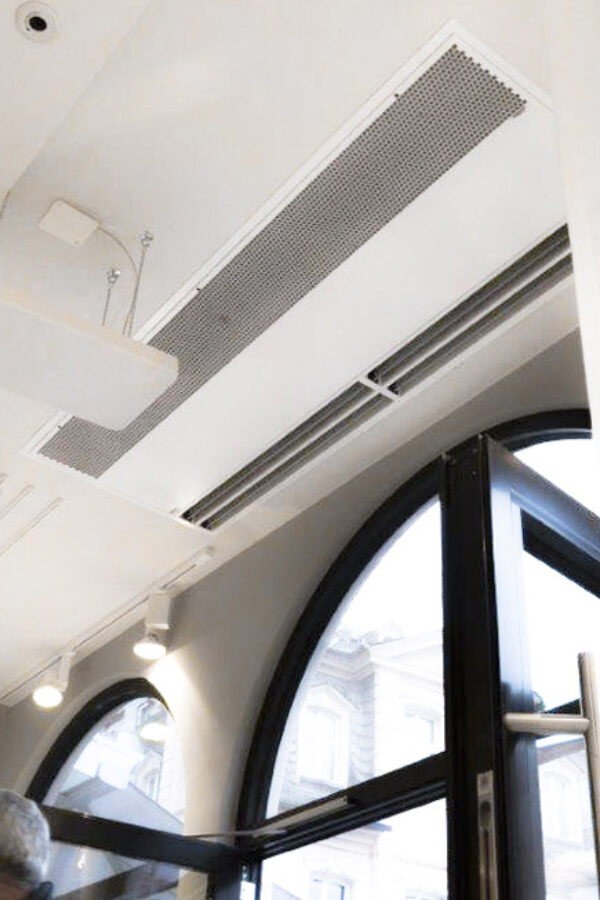

Cassette, with integrated intake chamber and surrounding frame for flush-to-ceiling installation. Recirculated air is drawn in from the bottom, facing the room, with a freely accessible inspection opening.

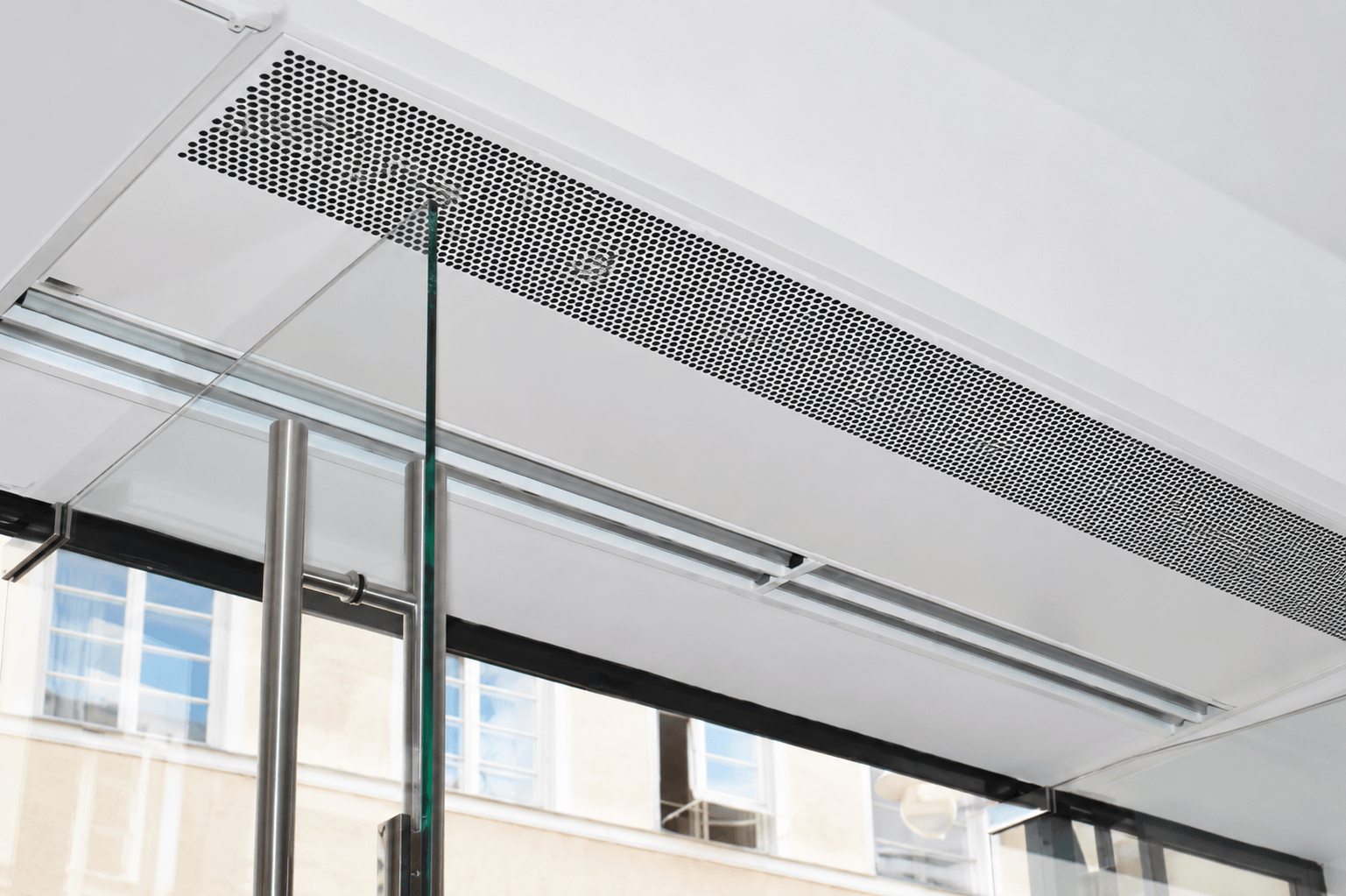

Installation in a suspended ceiling, with an integrated intake chamber, and intake and exhaust slide-on connectors for installation in a suspended ceiling (optional). Recirculating air is drawn in from the underside facing the room. Note: The access panel on the underside of the unit must open fully across its entire surface; therefore, the site-installed suspended ceiling in the area between the intake grille and the discharge element must be fully removable.

Intake temperature tLE: +20 °C
Air outlet temperature tLA: +34 °C
Air outlet height: up to 2.70 m

Data Sheet
DUAL L EC
Application Example
DUAL EC DUAL L EC

Ready-to-connect door air curtain systems available in the following variants:
Free-hanging, for visible installation above the door. Recirculated air is drawn in from the front, facing the room.
Cassette, with integrated intake chamber and surrounding frame for flush-to-ceiling installation. Recirculated air is drawn in from the bottom, facing the room, with a freely accessible inspection opening.
Installation in a suspended ceiling, with an integrated intake chamber, and intake and exhaust slide-on connectors for installation in a suspended ceiling (optional). Recirculating air is drawn in from the underside facing the room. Note: The access panel on the underside of the unit must open fully across its entire surface; therefore, the site-installed suspended ceiling in the area between the intake grille and the discharge element must be fully removable.

Intake temperature tLE: +20 °C
Discharge temperature tLA: +34 °C
Discharge height: up to 3.00 m

Data Sheet

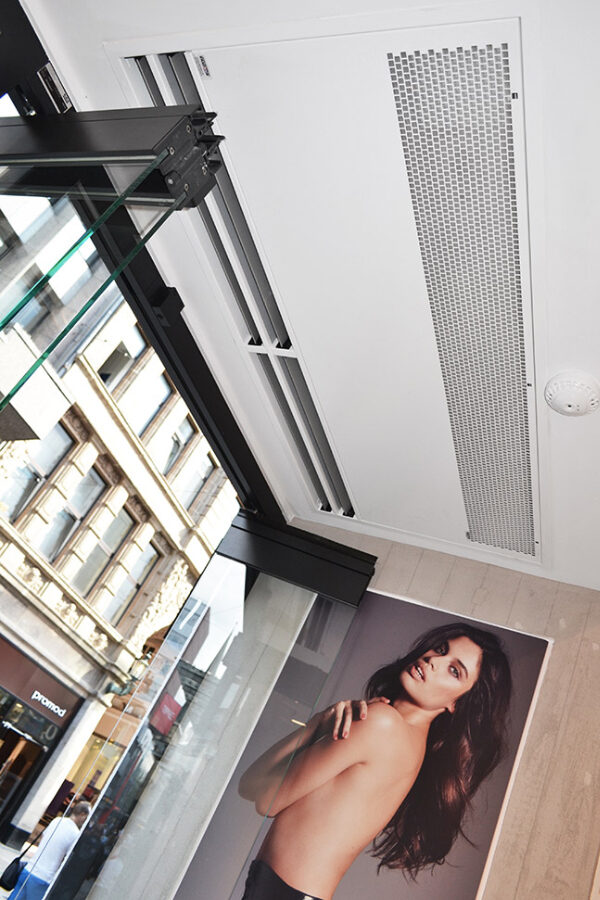

DUAL DX M/L EC
Application Example
DUAL EC DUAL DX M/L EC

Ready-to-install door air curtain system with direct evaporation, heating mode only, available in the following variants:
Free-hanging, for visible installation above the door. Recirculated air is drawn in from the front on the room side
Cassette, with integrated intake chamber and surrounding frame for flush-to-ceiling installation. Recirculating air intake is located on the underside facing the room, with a freely accessible access panel.
Suspended ceiling installation, with integrated intake chamber, and sliding intake and exhaust connections for installation in a suspended ceiling (optional). Recirculating air intake occurs from the underside facing the room. Note: The inspection flap on the underside of the unit must open fully across its entire surface; therefore, the on-site suspended ceiling in this area must be completely removable.

Intake temperature tLE: +20 °C
Air outlet temperature tLA: +34 °C
Air outlet height DX-M: up to 2.70 m
Air outlet height DX-L: up to 3.00 m
Heating gas temperature: 70 °C
Condensation temperature: 50 °C
Condensate outlet: 45 °C
Operating pressure: max. 45 bar

Data Sheet
×
