  • Blowout height up to 3.00 m
  • Airflow rate of 1,800–7,200 m³/h
  • Device length from 1.0 m to 3.0 m
  • Custom Color Selection
  • Heating capacity from 8.5 to 58.2 kW

Ellipse EC

Designer Air Curtains


Ellipse EC
Designer Air Curtain


Ellipse EC combines high functionality with sophisticated design and is ideal for stylishly designed entryways. The free-hanging, ready-to-install unit, featuring a modern elliptical design, can be seamlessly integrated into a variety of door architectures thanks to its powder-coated sheet steel or stainless steel finish.

Die werkzeuglos verstellbare Jetflow-Ausblasdüse mit asymmetrischem Düsenquerschnitt sorgt für einen gleichmäßig geführten Luftstrahl mit großer Wurfweite. Optional ist das Gerät mit Standard-Luftwalze für raumseitige Ansaugung oder mit umgedrehter Luftwalze für türseitige Ansaugung erhältlich.

Elegance in Form, Precision in Function
  1. Made in Germany
  2. Mehrfach verstellbare Jetflow-Ausblasdüse mit adaptivem, asymmetrischem Querschnitt
  3. EC Fans
  4. Custom unit lengths up to 3,000 mm
  5. Easy to maintain thanks to the filterless micro-intake grille
  6. Various heating media are possible
  7. TEKADOOR Electronic Multifunction Control Unit; on-site control is optional

Self-supporting steel/aluminum composite construction with no visible screws, available with a powder-coated finish in any RAL color or in a stainless steel version. Jetflow exhaust nozzle made of aluminum, powder-coated to match the unit’s color. Designer intake grille with a fine-perforated pattern for easy-to-maintain, filterless operation.

DHW: for standard-temperature DHW 70/50°C and low-temperature DHW 60/40°C; other temperatures available upon request.
DX: DX coils brazed under nitrogen for use with heat pumps (heating mode only). High-quality heat exchangers made of copper tubing, with press-fitted, extra-strong aluminum fins.
ELEKTRO: 3-stage 400V heat exchanger, spiral-shaped and corrosion-resistant, with thermal overheating protection and a run-on circuit.

Die einzeln angetriebenen EC-Ventilatoren mit integriertem Motorschutz sind doppelseitig ansaugend, vibrationsfrei gelagert und werden durch ein PWM – Signal (Pulsweitenmodulation) angesteuert.

Die Montage erfolgt durch auf der Geräteoberseite eingelassene Nietmuttern (M8) und optional erhältliches Montagematerial. In der Standardausführung braucht das Gerät für den Elektroanschluss nicht geöffnet zu werden. Anschlussklemmen für die Spannungsversorgung sowie die Steckverbindungen für das Schaltgerät und den Parallelbetrieb sind von außen zugänglich.

Easy-to-maintain cleaning—micro-grille—no need to open the unit; simply vacuum through the intake grille. A bolted and secured access panel (hinged on one side) on the underside of the unit that is easy to open for maintenance work.

Der Ausblas erfolgt über die mehrfach verstellbare Jetflow-Ausblasdüse (verstellbar ohne Hilfsmittel), mit adaptivem, asymmetrischem Düsenquerschnitt, die den Luftstrahl mit großer Wurfweite gleichmäßig führt. Ausführung wählbar mit Standard-Luftwalze (raumseitige Ansaugung) oder mit umgedrehter Luftwalze (türseitige Ansaugung).

TEKADOOR CAT Electronic Multifunctional Control System

  • A 20-meter pre-assembled, shielded data cable is included as standard with devices equipped with PWW and electric heating.
  • The 5-stage CAT control system includes a manual/automatic mode and a summer/winter switch as standard features.
  • A weekly timer with a timer function can optionally be implemented using enable contacts.
  • For winter operation, a solenoid valve rated up to 2.5 A can be connected (optional).
  • With the CAT control system, the airflow can be manually adjusted in 5 steps, and the heating output—which, in the case of electric heating, depends on the fan speed—can be manually adjusted in 3 steps.
  • An enable contact and potential-free operating and fault signals are available for control via a customer-supplied BMS or DDC.
  • Up to 10 devices can be connected in parallel in a master-slave configuration.
  • On-site control via a ModBus interface is also possible.

Ellipse EC

TECHNICAL SPECIFICATIONS

Aesthetics.
Performance.
Perfect harmony.
Custom device length From 1.0 m to 3.0 m
Discharge Height Up to 3.00 m
Heating Media PWW, Electric, DX Coil
Custom device length From 1.0 m to 3.0 m
Blow-out height Up to 3.00 m
Heating Media PWW, Electrical, DX Register
Heating capacity From 8.5 to 58.2 kW
Case Color Custom color selection in standard RAL colors; stainless steel available upon request.
Dimensions (H/T) 300 mm / 800 mm
Airflow From 1,800 to 7,200 m³/h
Temperature Version (PWW) Standard versions: 70/50 °C and 60/40 °C; other temperatures available upon request
Installation Options Free-hanging
Weight From 50 to 168 kg
Download the data sheet
THE MODELS

THE Ellipse EC Series

Discover the various models in the Ellipse EC Series— designed for maximum performance, modern design, and efficient airflow in a wide range of applications.

ELLIPSE 2000 SLW EC
Application Example
Ellipse EC ELLIPSE 2000 SLW EC

A ready-to-connect, free-hanging door air curtain system for surface mounting with a standard SLW air roller. Air is drawn in from the room side and discharged directly at the door. Air rollers of different sizes are installed depending on the room size. The standard roller is selected for small to medium door widths and ground-level retail spaces with balanced pressure conditions.

Intake temperature tLE: +20 °C
Air outlet temperature tLA: +34 °C
Air outlet height: up to 2.70 m

Data Sheet
ELLIPSE 3000 ULW EC
Application Example
Ellipse EC ELLIPSE 3000 ULW EC

Ready-to-connect, free-hanging air curtain system for surface mounting with an inverted air roller (ULW). Mixed air is drawn in at the door and discharged into the room. A frost protection thermostat is absolutely essential for the ULW model! Applications include unfavorable business locations and challenging entrance situations, such as multi-story buildings or large entrance areas. The inverted air curtain counteracts the cold outside air. Air movement in the entrance area is reduced, and the shielding performance is increased.

Intake temperature tLE: +10 °C
Discharge temperature tLA: +34 °C
Discharge height: up to 3.00 m

Data Sheet
ELIPSE 3000 SLW EC
Application Example
Ellipse EC ELIPSE 3000 SLW EC

A ready-to-connect, free-hanging door air curtain system for surface mounting with a standard SLW air roller. Air is drawn in from the room side and discharged directly at the door. Air rollers of different sizes are installed depending on the room size. The standard roller is selected for small to medium door widths and ground-level retail spaces with balanced pressure conditions.

Intake temperature tLE: +20 °C
Discharge temperature tLA: +34 °C
Discharge height: up to 3.00 m

Data Sheet
ELLIPSE 2000 DX-H EC
Application Example
Ellipse EC ELLIPSE 2000 DX-H EC

Heating mode only!
Ready-to-install door air curtain system, free-hanging with standard air curtain.

Intake temperature tLE: +20 °C
Air outlet temperature tLA: +34 °C
Air outlet height: up to 2.70 m
Heating gas temperature: 70 °C
Condensation temperature: 50 °C
Condensate outlet: 45 °C
Operating pressure: max: 45 bar

Data Sheet
ELLIPSE 3000 DX-H EC
Application Example
Ellipse EC ELLIPSE 3000 DX-H EC

Heating mode only!
Ready-to-install door air curtain system, free-hanging with standard air curtain.

Intake temperature tLE: +20 °C
Air outlet temperature tLA: +34 °C
Air outlet height: up to 3.00 m
Heating gas temperature: 70 °C
Condensation temperature: 50 °C
Condensate outlet: 45 °C
Operating pressure: max: 45 bar

Data Sheet
ELLIPSE 2000 ULW EC
Application Example
Ellipse EC ELLIPSE 2000 ULW EC

Ready-to-connect, free-hanging air curtain system for surface mounting with an inverted air roller (ULW). Mixed air is drawn in at the door and discharged into the room. A frost protection thermostat is absolutely essential for the ULW model! Applications include unfavorable business locations and challenging entrance situations, such as multi-story buildings or large entrance areas. The inverted air curtain counteracts the cold outside air. Air movement in the entrance area is reduced, and the shielding performance is increased.

Intake temperature tLE: +10 °C
Air outlet temperature tLA: +34 °C
Air outlet height: up to 2.70 m

Data Sheet
×
Ellipse EC

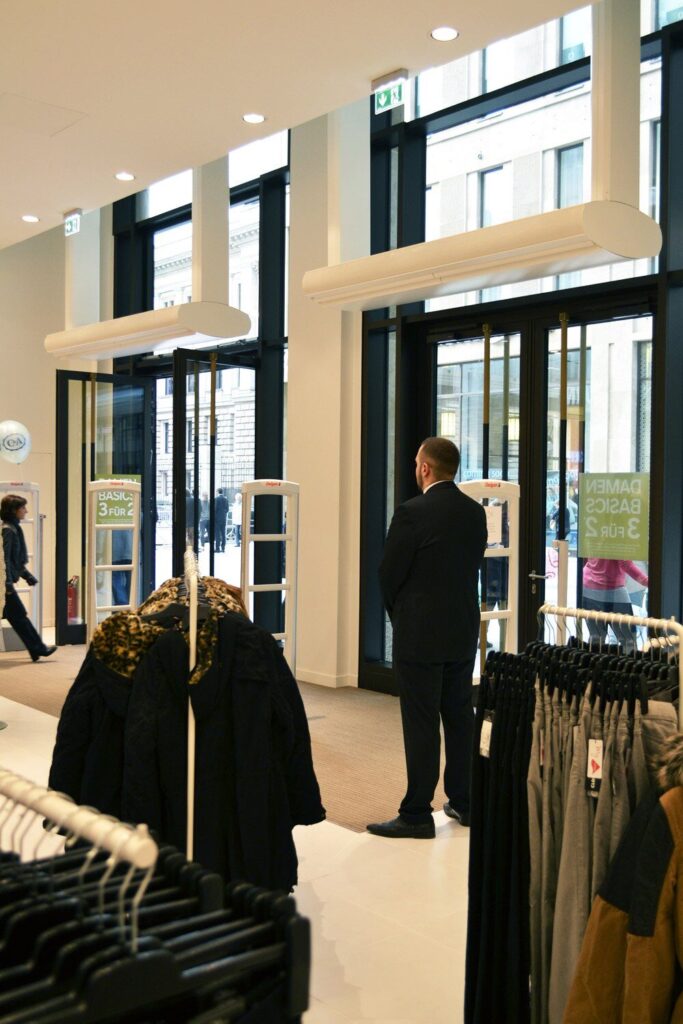

Examples of Use

Discover the wide range of possible uses and real-world applications of our systems. The following examples show how design, efficiency, and performance can be optimally integrated into a wide variety of architectural and spatial concepts.

Our Accessories

The right accessories provide the perfect complement and expand the range of applications for your systems. From technical components to control and mounting solutions to practical add-ons—our accessories are versatile and designed for reliable integration into everyday use.

Our Accessories
Ceiling Mounting Kit
Ceiling Mounting Kit

For easy, vibration-free ceiling mounting, consisting of M8 or M10 threaded rods, up to 100...

More Info
Antifreeze Thermostat
Antifreeze Thermostat

Used to monitor PWW heat exchangers when there is a risk of freezing. As soon as the temperature drops below +7 °C...

More Info
Solenoid Valve
Solenoid Valve

For automatic control of the heating water circuit. During summer operation or when the air conditioner is...

More Info
Thermoelectric Shut-off Valve
Thermoelectric Shut-off Valve

230 V / 50 Hz, normally closed. For automatic control of the heating water circuit. In the summer...

More Info
Electric Blower Outlet Temperature Controller
Electric Blower Outlet Temperature Controller

Electronic supply air controller with 0-10 V actuator and supply air temperature sensor, fully integrated and...

More Info
Wall bracket
Wall bracket

Wall brackets with top-mounted fastening devices, featuring threaded rods, vibration dampers, and locknuts...

More Info
Data Cable
Data Cable

Pre-assembled, shielded data cables for connecting air curtain systems to the control panel or...

More Info
Thermostatic Straight-Through Valve
Thermostatic Straight-Through Valve

Limits the supply air temperature (adjustment range: +20 °C to +35 °C). Constant supply air temperature limit...

More Info
×
TEKADOOR CAT Control System
CAT 300 Controller

CONTROL SYSTEM

TEKADOOR air curtains come standard with a high-quality CAT controller with a touchscreen display. Industrial air curtains from the THI series and DX units are controlled via a HATI controller . Additionally, depending on the application, a connection via ModBus module or control via a 0–10 V signal are also possible.
