  • Blow-out height up to 3.50 m
  • Air flow rate of 1,800–14,500 m³/h
  • Device length from 1.0 to 3.0 m
  • Three Installation Options
  • LOW NOISE Model TREND+ LNS/LNX EC

Trend+ EC

The Store Classic


Trend+ EC
All-Purpose Air Curtain


Trend+ EC is the tried-and-true classic for retail spaces—versatile, powerful, and flexible to integrate. This ready-to-install unit offers numerous application possibilities and, with three installation options, adapts perfectly to different room layouts: free-hanging, flush with the ceiling in combination with an intake chamber and an optional aluminum trim frame, or with a sliding connector for installation in suspended ceilings.

Thanks to service-friendly filters and micro-intake grilles, easy installation, and the powerful Synchrostream discharge system, Trend+ EC is designed for comfortable operation and high functionality. A variety of heating media also allow for a customized design to meet a wide range of requirements.

The Classic Choice for Modern Retail Concepts
  1. Made in Germany
  2. Sturdy, self-supporting sheet steel enclosure with a high-quality powder coating; RAL 9016 as standard
  3. Available in a low-noise version
  4. Installation options: Free-hanging, flush with the ceiling with an intake chamber, recessed ceiling installation with a sliding connector, floor-standing unit available upon request
  5. Custom unit lengths up to 3,000 mm
  6. Easy-to-maintain filters or micro-intake grilles
  7. Synchrostream Exhaust System
  8. Various heating media are possible
  9. TEKADOOR Electronic Multifunction Control Unit; on-site control is optional

Heat exchangers for various heating media
DHW: for standard-temperature DHW 70/50°C and 80/60°C; for low-temperature DHW 60/40°C; other temperatures available upon request. High-quality heat exchangers made of copper tubing, with press-fitted, extra-strong aluminum fins.
ELECTRIC: Series 5, 7, LNS, and HE-L: 3-stage, spiral-wound, corrosion-resistant heat exchangers. The electric heat exchangers feature a run-on circuit and overheating protection.

Easy-to-maintain filter cleaning thanks to the unit's simple opening mechanism. The inspection hatch on the underside of the unit—which is blind-bolted and secured (hinged on one side)—is easy to open for maintenance work.

TEKADOOR CAT Electronic Multifunctional Control System

  • A 20-meter pre-assembled, shielded data cable is included as standard with devices equipped with PWW and electric heating.
  • The 5-stage CAT control system includes a manual/automatic mode and a summer/winter switch as standard features.
  • A weekly timer with a timer function can be implemented optionally using enable contacts.
  • For winter operation, a solenoid valve rated up to 2.5 A can be connected (optional).
  • With the CAT control system, the airflow can be manually adjusted in 5 steps, and the heating output—which, in the case of electric heating, depends on the fan speed—can be manually adjusted in 3 steps.
  • An enable contact and potential-free operating and fault signals are available for control via a customer-supplied BMS or DDC.
  • Up to 10 devices can be connected in parallel in a master-slave configuration.
  • On-site control via a ModBus interface is also possible.

The self-supporting sheet steel housing, which is screw-free in the visible area, is equipped with an easy-to-install mounting bracket and is available in the standard color white (RAL 9016). Custom colors or stainless steel finishes are available. The access panel is screwed into place behind the intake grille. Adjustable, aerodynamically optimized Synchrostream discharge system (natural anodized) that flushes with the bottom of the unit. Intake grille (in RAL 9006) made of perforated sheet metal with a G2 rigid foam filter behind it.

The efficiency of the EC fans used by Tekadoor is >90% under partial load, which is approximately 30–35% higher than that of conventional AC fans. This not only increases efficiency but also reduces operating costs. The individually driven EC fans with integrated motor protection feature double-sided intake, are mounted on vibration-free bearings, and are controlled by a PWM (pulse width modulation) signal. They not only comply with the ErP Directive but actually exceed this standard.

Simple and easy-to-install mounting using recessed rivet nuts (M8) on the top of the unit and mounting hardware available as an accessory. In the standard configuration, the unit does not need to be opened for electrical connection. Terminal blocks for the power supply, as well as the connectors for the control unit and parallel operation, are accessible from the outside.

Trend+ EC

TECHNICAL SPECIFICATIONS

Tried and true.
Flexible.
Reliable.
Custom device length From 1.0 to 3.0 m
Discharge Height Up to 3.50 m
Heating Methods Hot water, electric
Custom device length From 1.0 to 3.0 m
Blow-out height Up to 3.50 m
Heating Media PWW, Electrical
Heating capacity From 8.48 to 68.33 kW
Case Color Standard color: RAL 9016; other colors available upon request
Dimensions (H/T) 300–400 / 600–750 mm
Airflow From 1,800 to 14,500 m³/h
Temperature Rating Standard versions: 80/60 °C, 70/50 °C, and 60/40 °C; other temperatures available upon request
Installation Options Free-hanging, flush with the ceiling, with an intake chamber, and installed in a false ceiling with a sliding connection
Weight From 52 to 299 kg
Download the data sheet
THE MODELS

THE Trend+ EC Series

Discover the various models in the Trend+ EC Series— designed for maximum performance, modern design, and efficient airflow in a wide range of applications.

TREND+ 5 EC
Application Example
Trend+ EC TREND+ 5 EC

Ready-to-connect air curtain systems available in the following variants:

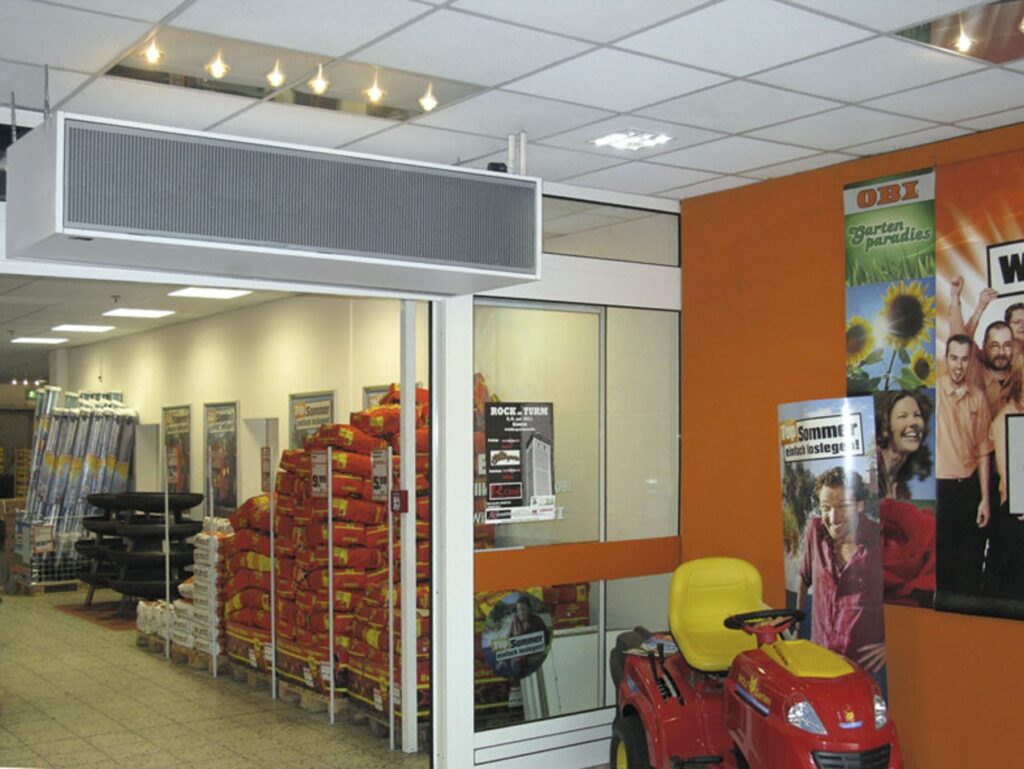

Free-hanging, for visible installation above the door. Recirculated air is drawn in from the front on the room side.
Flush with the ceiling, with an integrated intake chamber (optional) and a surrounding frame. Recirculated air is drawn in from the bottom on the room side.
Installation in a false ceiling, with integrated intake chamber, and intake and exhaust slide-on connectors (optional). Recirculating air is drawn in from the underside on the room side.

Intake temperature tLE: +20 °C
Air outlet temperature tLA: +34 °C
Air outlet height: up to 2.70 m

Data Sheet
TREND+ 7 EC
Application Example
Trend+ EC TREND+ 7 EC

Ready-to-connect air curtain systems available in the following variants:
Free-hanging, for visible installation above the door. Recirculated air is drawn in from the front on the room side.
Flush with the ceiling, with an integrated intake chamber (optional) and a surrounding frame. Recirculated air is drawn in from the bottom on the room side.
Installation in a false ceiling, with integrated intake chamber, and intake and exhaust slide-on connectors (optional). Recirculating air is drawn in from the underside on the room side.

Intake temperature tLE: +20 °C
Discharge temperature tLA: +34 °C
Discharge height: up to 3.00 m

Data Sheet
TREND+ 15 EC
Application Example
Trend+ EC TREND+ 15 EC

Ready-to-connect air curtain systems available in the following variants:
Free-hanging, for visible installation above the door. Recirculated air is drawn in from the front on the room side.
Flush with the ceiling, with an integrated intake chamber (optional) and a surrounding frame. Recirculated air is drawn in from the bottom on the room side.
Installation in a false ceiling, with integrated intake chamber, and intake and exhaust slide-on connectors (optional). Recirculating air is drawn in from the underside on the room side.

Intake temperature tLE: +20 °C
Air outlet temperature tLA: +34 °C
Air outlet height: up to 3.50 m

Data Sheet
TREND+ LNS EC
Application Example
Trend+ EC TREND+ LNS EC

Ready-to-connect LOW NOISE air curtain systems available in the following models:
Free-hanging, for visible installation above the door. Recirculated air is drawn in from the front on the room side.
Flush with the ceiling, with an integrated intake chamber (optional) and a surrounding frame. Recirculated air is drawn in from the bottom on the room side.
Installation in a false ceiling, with integrated intake chamber, and intake and exhaust slide-on connectors (optional). Recirculating air is drawn in from the underside facing the room.

Intake temperature tLE: +20 °C
Discharge temperature tLA: +34 °C
Discharge height: up to 2.90 m

Data Sheet
TREND+ LNX EC
Application Example
Trend+ EC TREND+ LNX EC

Ready-to-connect LOW NOISE air curtain systems available in the following models:
Free-hanging, for visible installation above the door. Recirculated air is drawn in from the front on the room side.
Flush with the ceiling, with an integrated intake chamber (optional) and a surrounding frame. Recirculated air is drawn in from the bottom on the room side.
Installation in a false ceiling, with integrated intake chamber, and intake and exhaust slide-on connectors (optional). Recirculating air is drawn in from the underside facing the room.

Intake temperature tLE: +20 °C
Discharge temperature tLA: +34 °C
Discharge height: up to 3.20 m

Data Sheet
TREND+ HE-L EC
Application Example
Trend+ EC TREND+ HE-L EC

Ready-to-install door air curtain system with high-end motors, available in the following variants:
Free-hanging, for visible installation above the door. Recirculated air is drawn in from the front on the room side.
Flush with the ceiling, with an integrated intake chamber (optional) and a surrounding frame. Recirculated air is drawn in from the bottom on the room side.
Installation in a false ceiling, with integrated intake chamber, and intake and exhaust slide-on connectors (optional). Recirculating air is drawn in from the underside facing the room.

Intake temperature tLE: +20 °C
Air outlet temperature tLA: +34 °C
Air outlet height: up to 3.30 m

Data Sheet
×
Trend+ EC
Examples of Use

Discover the wide range of possible uses and real-world applications of our systems. The following examples show how design, efficiency, and performance can be optimally integrated into a wide variety of architectural and spatial concepts.

Our Accessories

The right accessories provide the perfect complement and expand the range of applications for your systems. From technical components to control and mounting solutions to practical add-ons—our accessories are versatile and designed for reliable integration into everyday use.

Our Accessories
Ceiling Mounting Kit
Ceiling Mounting Kit

For easy, vibration-free ceiling mounting, consisting of M8 or M10 threaded rods, up to 100...

More Info
Antifreeze Thermostat
Antifreeze Thermostat

Used to monitor PWW heat exchangers when there is a risk of freezing. As soon as the temperature drops below +7 °C...

More Info
Solenoid Valve
Solenoid Valve

For automatic control of the heating water circuit. During summer operation or when the air conditioner is...

More Info
Thermoelectric Shut-off Valve
Thermoelectric Shut-off Valve

230 V / 50 Hz, normally closed. For automatic control of the heating water circuit. In the summer...

More Info
Electric Blower Outlet Temperature Controller
Electric Blower Outlet Temperature Controller

Electronic supply air controller with 0-10 V actuator and supply air temperature sensor, fully integrated and...

More Info
Wall bracket
Wall bracket

Wall brackets with top-mounted fastening devices, featuring threaded rods, vibration dampers, and locknuts...

More Info
Data Cable
Data Cable

Pre-assembled, shielded data cables for connecting air curtain systems to the control panel or...

More Info
Thermostatic Straight-Through Valve
Thermostatic Straight-Through Valve

Limits the supply air temperature (adjustment range: +20 °C to +35 °C). Constant supply air temperature limit...

More Info
×
TEKADOOR CAT Control System
CAT 300 Controller

CONTROL SYSTEM

TEKADOOR air curtains come standard with a high-quality CAT controller with a touchscreen display. Industrial air curtains from the THI series and DX units are controlled via a HATI controller . Additionally, depending on the application, a connection via ModBus module or control via a 0–10 V signal are also possible.
