Blow-out height up to 4.00 m
Airflow rate of 4,600–9,200 m³/h
Device length from 1.5 to 3.0 m
Two installation options
Heating capacity of 18.58–37.16 kW

TIC

Industrial Air Curtains

TIC
Industrial Air Curtains

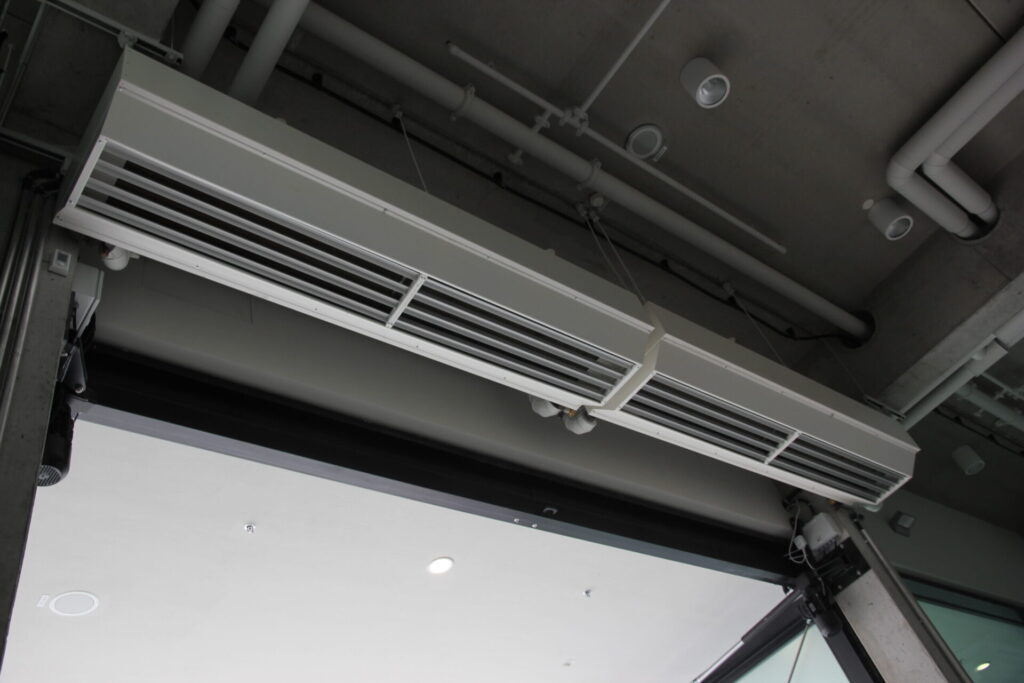

TIC is the reliable air curtain solution for large doors in industrial, warehouse, and logistics facilities. The system reduces the influx of cold air, keeps warm air inside the building, and thus creates better conditions for energy efficiency, worker comfort, and the smooth flow of goods.

This ready-to-install industrial air curtain can be flexibly mounted horizontally or vertically and is available as either a hot-air or recirculating air curtain. Thanks to its modular design, the TIC can be optimally adapted to different door sizes and structural requirements.

A Reliable Solution for Industry and Logistics

All the Benefits at a Glance

Made in Germany
Rugged enclosure design for industrial applications
Long throw distance, optimal shielding
PWW and Electric Heating Coils
Available with EC and AC fans
Special nozzle with an asymmetrical, angled constriction, or Synchrostream. Long-throw nozzle as an exhaust system
Installation Options: Freestanding and Wall-Mounted
TEKADOOR EC Controller, TEKADOOR AC Controller

Durable housing

The enclosures of the TIC series are manufactured from robust, self-supporting Magnelis-coated sheet steel and are powder-coated in the standard color RAL 7032 (Pebble Gray) or in any standard RAL color upon request. For the freestanding model, the floor bracket is included; for in-line installation, the connecting brackets are included.

Easy Installation

Easy installation thanks to the rivet nuts (M10) recessed into the top of the unit.

Intelligent Control

TEKADOOR CAT Electronic Multifunctional Control System

A 20-meter pre-assembled, shielded data cable is included as standard with devices equipped with PWW and electric heating.
The 5-stage CAT control system includes a manual/automatic mode and a summer/winter switch as standard features.
A weekly timer with a timer function can be implemented optionally using enable contacts.
For winter operation, a solenoid valve rated up to 2.5 A can be connected (optional).
With the CAT control system, the airflow can be manually adjusted in 5 steps, and the heating output—which, in the case of electric heating, depends on the fan speed—can be manually adjusted in 3 steps.
An enable contact and potential-free operating and fault signals are available for control via a customer-supplied BMS or DDC.
Up to 10 devices can be connected in parallel in a master-slave configuration.
On-site control via a ModBus interface is also possible.

High-Performance AC/EC Fans

Axial fans with three-phase motors, IP 54 protection rating, motor protection via thermal contacts, including a protective touch guard. These fans comply with the ErP Directive regarding minimum efficiency requirements for fans within the EU. Optionally, the door air curtain can be supplied with individually driven EC fans.

For various heating media

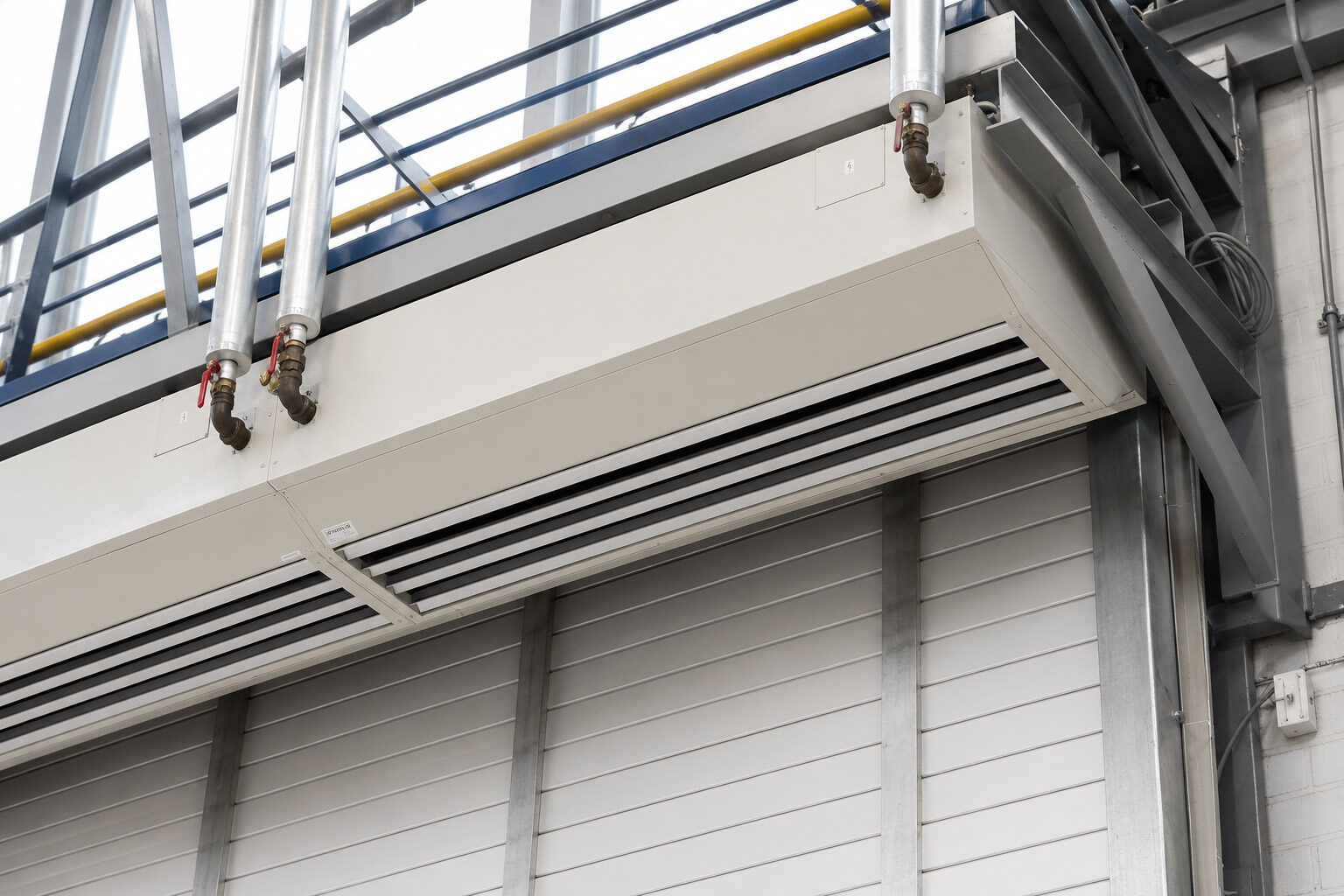

Heat exchangers for various heating media
DHW: for standard-temperature DHW 70/50°C and 80/60°C; for low-temperature DHW 60/40°C; other temperatures available upon request. 3-stage heat exchanger , spiral-shaped, corrosion-resistant, with a run-on circuit and overheating protection. Recirculation operation without heating (without a heating medium) is possible.

Easy-to-Perform Maintenance

Because the fin spacing on the heating coil was deliberately chosen to be wide, a filter is not required. This makes it easy to clean the units during maintenance.

TIC

TECHNICAL SPECIFICATIONS

Industrial-Grade Power.
Long Throw Distance.
Maximum Shielding.

Custom device length From 1.5 to 3.0 m

Blow-out Height / Shielding Width Up to 4.00 m

Heating Capacity From 18.58 to 37.16 kW

Custom device length	From 1.5 to 3.0 m
Blow-out Height / Shielding Width	Up to 4.00 m
Heating Media	PWW, Electrical
Heating capacity	From 18.58 to 37.16 kW
Case Color	Galvanized sheet steel; other colors available upon request
Dimensions (H/T)	640/465 mm
Airflow	From 4,600 to 9,200 m³/h
Temperature Rating	Standard versions: 70/50 °C, 80/60 °C, and 60/40 °C; other temperatures available upon request
Installation Options	Wall-mounted or freestanding
Weight	From 80 to 155 kg

Download the data sheet

THE MODELS

THE TIC SERIES

Discover the various models in the TIC Series— designed for maximum performance, modern design, and efficient airflow in a wide range of applications.

TIC

Examples of Use

Discover the wide range of possible uses and real-world applications of our systems. The following examples show how design, efficiency, and performance can be optimally integrated into a wide variety of architectural and spatial concepts.

Our Accessories

The right accessories provide the perfect complement and expand the range of applications for your systems. From technical components to control and mounting solutions to practical add-ons—our accessories are versatile and designed for reliable integration into everyday use.

Our Accessories

Door Contact Magnetic Switch

In automatic mode, this turns on the door air curtain at the preselected settings.

Ceiling Mounting Kit

For easy, vibration-free ceiling mounting, consisting of M8 or M10 threaded rods, up to 100...

Antifreeze Thermostat

Used to monitor PWW heat exchangers when there is a risk of freezing. As soon as the temperature drops below +7 °C...

Solenoid Valve

For automatic control of the heating water circuit. During summer operation or when the air conditioner is...

Thermoelectric Shut-off Valve

230 V / 50 Hz, normally closed. For automatic control of the heating water circuit. In the summer...

Electric Blower Outlet Temperature Controller

Electronic supply air controller with 0-10 V actuator and supply air temperature sensor, fully integrated and...

Room sensor (surface-mounted)

Room Temperature Sensor – RT-FD (only when used with CAT and CAT E).

Flexible Heating Connections

Flexible heating connection with screw fittings for the supply and return lines.

Wall bracket

Wall brackets with top-mounted fastening devices, featuring threaded rods, vibration dampers, and locknuts...

TKI Door Contact Switch

Automatically controls the air curtain(s) when the gates or doors open.

Data Cable

Pre-assembled, shielded data cables for connecting air curtain systems to the control panel or...

Repair Switch

Loose 20A 6-pole repair switch. Loose, lockable repair switch

Floor bracket

Floor bracket for mounting air curtains to the floor.

Thermostatic Straight-Through Valve

Limits the supply air temperature (adjustment range: +20 °C to +35 °C). Constant supply air temperature limit...

CONTROL SYSTEM

TEKADOOR air curtains come standard with a high-quality CAT controller with a touchscreen display. Industrial air curtains from the THI series and DX units are controlled via a HATI controller . Additionally, depending on the application, a connection via ModBus module or control via a 0–10 V signal are also possible.
